The Craftsmanship Selection of Wolong Pump Valve - High Performance IHF Fluorine lined Centrifugal Pump System Pump.

The core equipment of this scheme adopts IHF series fluorine lined centrifugal pumps, designed specifically for transporting harsh chemical media such as strong corrosion, strong acid, strong alkali, organic solvents, etc. The pump body and overcurrent components are lined with  high-quality fluoroplastics (such as F46/F4), providing excellent corrosion resistance, ensuring long-term stable operation in highly corrosive environments, effectively protecting key components, and greatly extending equipment service life.

Ultimate corrosion resistance: The design of the perfluoroplastic lining can safely transport the vast majority of strong acids (such as sulfuric acid, hydrochloric acid, nitric acid), strong alkalis, organic solvents, and various mixed corrosive media, solving the problem of corrosion and leakage in traditional metal pumps.

Efficient and stable transportation: Optimized centrifugal pump hydraulic model design ensures efficient operation, stable flow and head, and meets the needs of continuous production. Low pulsation design reduces system disturbances.

Supporting siphon bucket to solve the stubborn problem of cavitation: specially equipped with siphon bucket (self-priming tank), effectively increasing the inlet pressure of the pump, significantly improving the suction performance, and eliminating the risk of cavitation. Especially suitable for conveying easily vaporized media (such as low boiling point solvents), or for working conditions with limited installation locations (requiring a certain suction stroke), ensuring the long-term stable operation and high reliability of the pump.

PLAN32 flushing solution, ensuring sealing safety: comes standard with API PLAN32 external flushing system. The system continuously injects clean, process compatible external flushing solution (such as cleaning water or solvent) into the mechanical seal chamber.

Convenient maintenance design - Drain ball valve: The bottom of the pump body is equipped with a drain ball valve. Before maintenance, replacement, or long-term shutdown, residual media in the pump chamber and pipelines can be easily and quickly emptied. This not only simplifies maintenance processes and improves work efficiency, but also ensures the safety of operators (avoiding contact with harmful media) and helps to thoroughly clean the system.

Stable foundation - light load steel base: The entire pump unit is installed on a light load steel base. This base provides stable and reliable support, ensuring precise alignment of components such as pumps, motors, and siphon barrels. Its design effectively absorbs operational vibrations, reduces noise, prevents pipeline stress or equipment damage caused by unstable foundations, and enhances the overall stability and safety of the system operation.

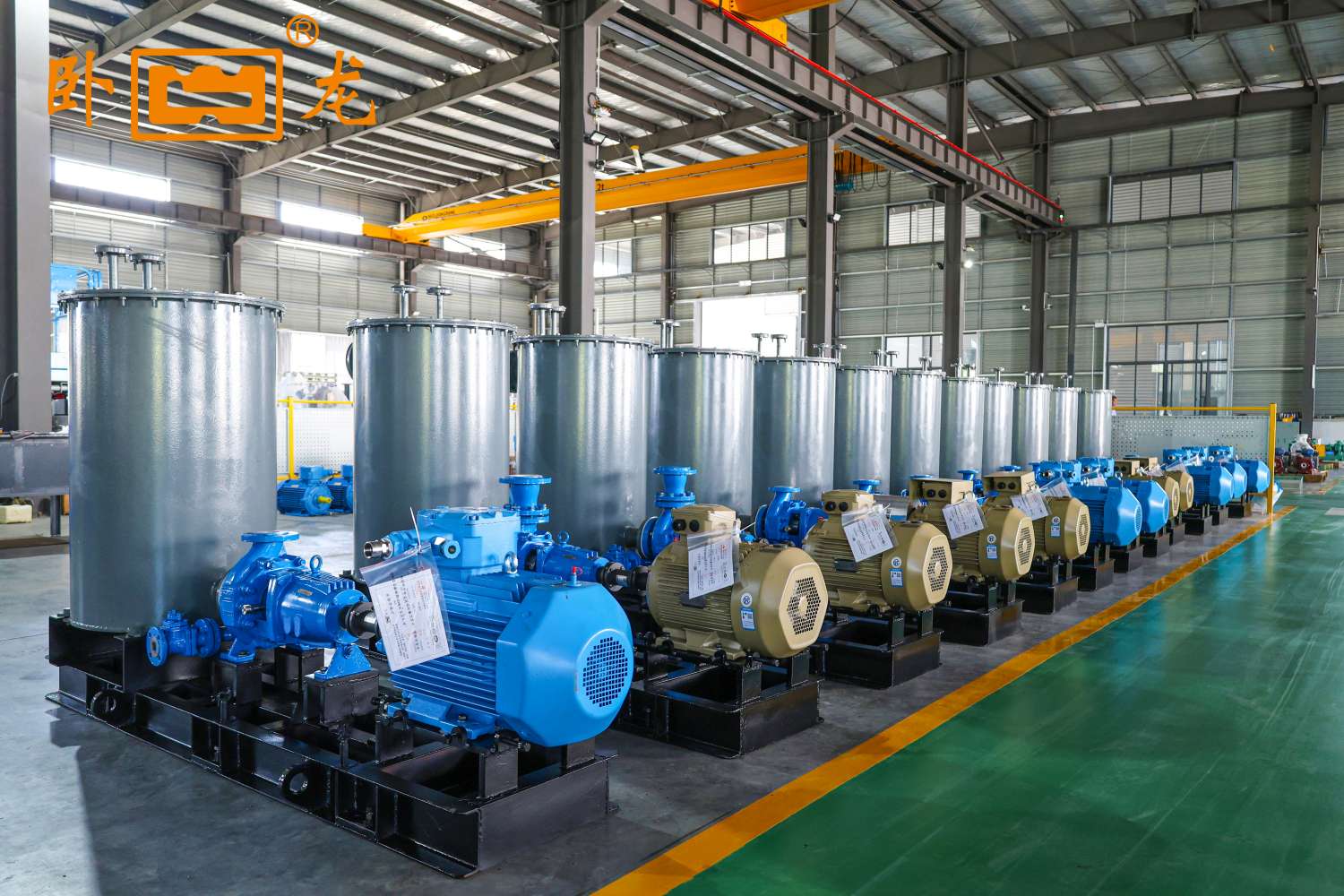

This IHF fluorine lined centrifugal pump system integrates a core corrosion-resistant pump body, a siphon bucket to ensure suction, a PLAN32 flushing to protect the seal, a drainage valve for easy maintenance, and a stable steel base for stable operation, together forming a high-performance, high reliability, and easy to maintain complete solution for harsh chemical conditions. It can effectively tackle complex challenges such as strong corrosion, easy vaporization, and solid content, maximizing production continuity and reducing overall operating costs.

As a leading pump and valve manufacturer in the industry, ANHUI WOLONG PUMP&VALVE CO.LTD has always served the fields of chemical, power, metallurgy, environmental protection, etc. with high-quality and high-performance products. We not only provide high-quality products, but also offer professional technical support and after-sales service to ensure the long-term stable operation of you r equipment!
